Wood Plastic Composite Machinery : Smarter Mixing, Co-Extrusion & Precision Extrusion Lines

Date:2025-05-07~2025-05-07

As demand for stronger, economical wood plastic composite (WPC) products increases, extrusion machinery must evolve. Modern WPC production lines incorporate co-extrusion, hopper mixing, and screw customization, ensuring high-quality, precise results that enhance both performance and aesthetics.


What Is Hopper Mixing and Screw Customization in WPC Machines?


In wood plastic composite (WPC) extrusion, hopper mixing and screw customization play a key role in ensuring material consistency, product quality, and processing efficiency. Hopper mixing pre-blends plastic resins and pellets to prevent separation and ensure smooth feeding. A customized screw is designed to match the raw materials, optimizing melting, mixing, and pressure control for high-quality output.


Why Are They Important?


  • Improved Material Consistency through Hopper Mixing
    Hopper mixing prevents uneven feeding caused by variations in material shape or density. This reduces surface defects and improves extrusion stability.
  • Stable Feeding for Continuous Production
    A well-designed hopper ensures smooth, continuous feeding, especially for wood-plastic blends, minimizing blockages and maintaining output consistency.
  • Optimized Melting and Mixing with Custom Screw Design
    Custom screw design adapts to different plastics like PE or PS, delivering the right shear and compression for even melting and thorough mixing. This improves surface finish and structural strength.
  • Enhanced Output Efficiency and Energy Control
    Tailored screw geometry reduces energy waste and stabilizes barrel temperature, leading to faster start-ups, better temperature control, and lower production loss.

Why Co-Extrusion Matters in Wood Plastic Composite Machinery?


Co-extrusion is a key WPC machinery technology that enhances product durability and design flexibility. Producing multi-layered profiles separates structural and aesthetic functions for greater performance and value.


  • Core Layer (Substrate):
    Made from various plastic blends, such as PE or PP, the core provides strength and stability.
  • Surface Layer (Capstock):
    Designed with durable materials, the surface layer improves resistance to moisture, insects, and slipping, while enhancing the product’s overall look and feel.

    Wood plastic board with natural texture and lasting strength


Key Benefits of Co-Extrusion Technology


  • Material Efficiency
    Co-extrusion supports efficient material use by combining eco-friendly core compounds with durable surface layers, ensuring both performance and resource savings.
  • Enhanced Durability
    The outer layer protects against moisture and wear, significantly enhancing lifespan and performance.
  • Design Flexibility
    Co-extrusion supports woodgrain textures, vibrant colors, and refined finishes—no secondary treatment needed.
  • Production Precision
    Advanced systems regulate temperature, pressure, and speed to ensure strong bonding and defect-free profiles.

Read more: Understanding WPC Profile Machines in 5 Minutes

Read more: Plastic Extrusion Machine : How it Shape Diverse Industries



WPC Profile Production: How Wood Plastic Composite Machinery Works


The wood plastic composite profile extrusion process involves several critical stages, each ensuring the consistent production of high-quality WPC profiles. Below is an overview of how wood plastic composite machinery operates:


  • Mixing:
    Plastic pellets, wood powder, and additives are uniformly mixed in the hopper. This ensures consistent feeding and stable operation throughout the wood plastic composite profile extrusion line.
  • Pelletizing:
    The blended material is melted and formed into pellets. Some wood plastic composite profile production lines incorporate this step to simplify material handling, storage, and subsequent feeding.
  • Co-Extrusion:
    Within the wood plastic composite machinery, materials are processed through a dual-layer mold. This simultaneously forms the structural core and the protective surface layer of the WPC profiles.

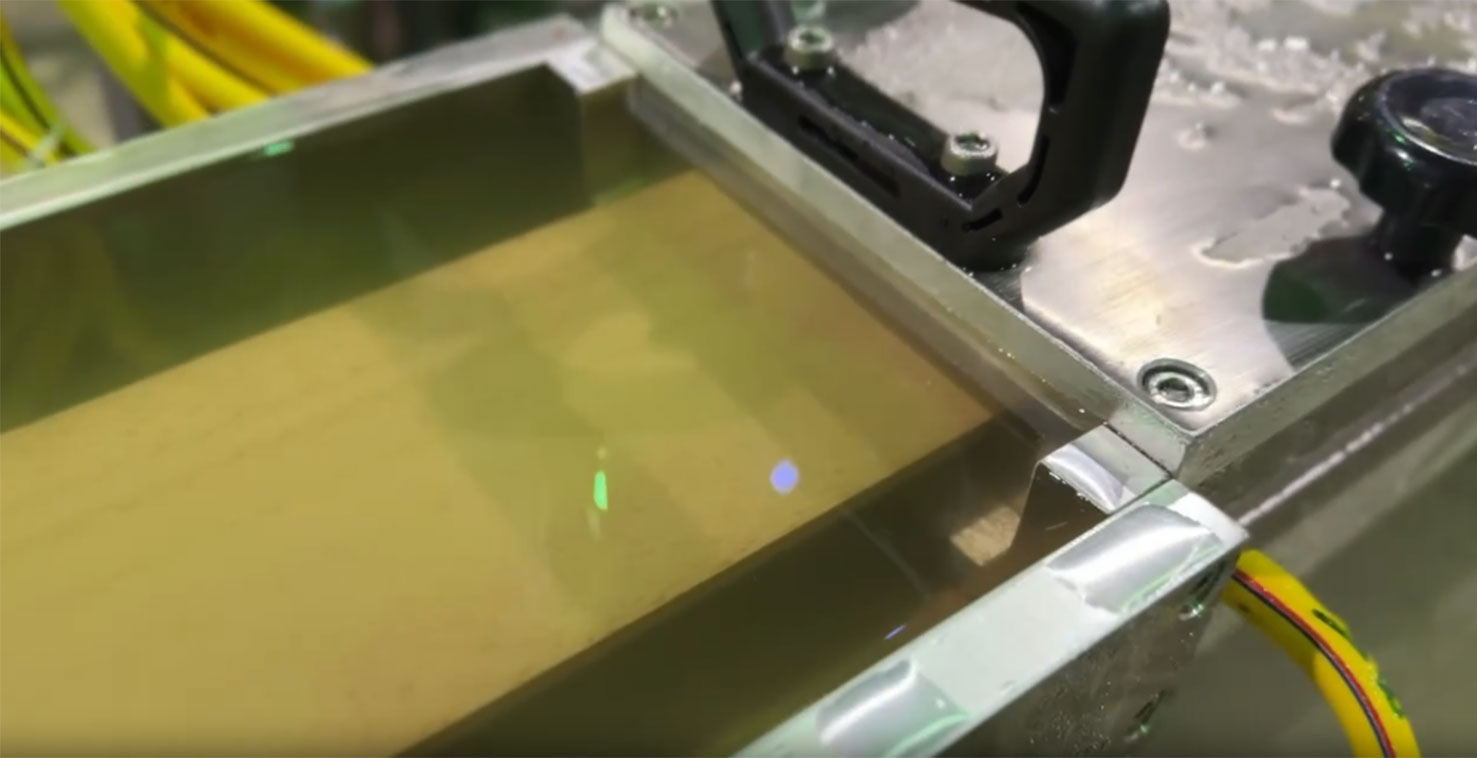

    WPC profile production line forming profiles with precision and cooling


    Wood plastic composite machine co-extruding durable WPC profiles

  • Surface Treatment:
    Final processing steps, such as embossing, lamination, or precision cutting, provide the profiles with their required texture, appearance, and finish. Most advanced wood plastic composite machinery integrates these treatments in-line for greater production efficiency.

    Wood plastic composite machine forming embossed surface textures


How Screw Diameter Affects WPC Extrusion Performance


In wood plastic composite machinery, the screw diameter is critical to controlling how plastic materials are melted, mixed, and conveyed through the system.


  • Smaller screw sizes (50–65 mm)
    Suitable for low-volume production lines. They offer quicker heating, lower energy consumption, and easier process control, making them ideal for small-sized profiles.
  • Larger screw sizes (70–100 mm)
    Designed for high-output production. They allow for greater material throughput and ensure stable processing performance, particularly when handling plastics with varying densities and flow characteristics.

Model Screw Diameter Output Capacity (kg/hr)
CY-50PW 50 mm Ø 20 ~ 40
CY-65PW 65 mm Ø 30 ~ 55
CY-70PW 70 mm Ø 35 ~ 65
CY-80PW 80 mm Ø 70 ~ 100
CY-100PW 100 mm Ø 70 ~ 100

Selecting the appropriate screw diameter is essential for optimizing production efficiency, ensuring material stability, and achieving consistent product quality across your wood plastic composite profile extrusion line.


Read more: WPC Profile Extrusion Machines - 6 Key Factors

Read more: Wood-Plastic Composite (WPC) Extrusion : Your Path to Sustainable and Versatile Building Materials



Case from Asia: WPC Profiles Outperform Traditional Wood in Outdoor Use


A client in Asia was dealing with all the usual headaches of traditional wood in outdoor spaces—slippery decks after rain, rotting from moisture, and constant insect issues. On top of that, they couldn’t get the right texture, grain, or color to match local design tastes.


“Compared to wood boards, Cheng Yu’s wood plastic composite materials are significantly more resistant to moisture, insects, and slipping. They are safer, last longer, and maintain their appearance even in harsh weather conditions.”

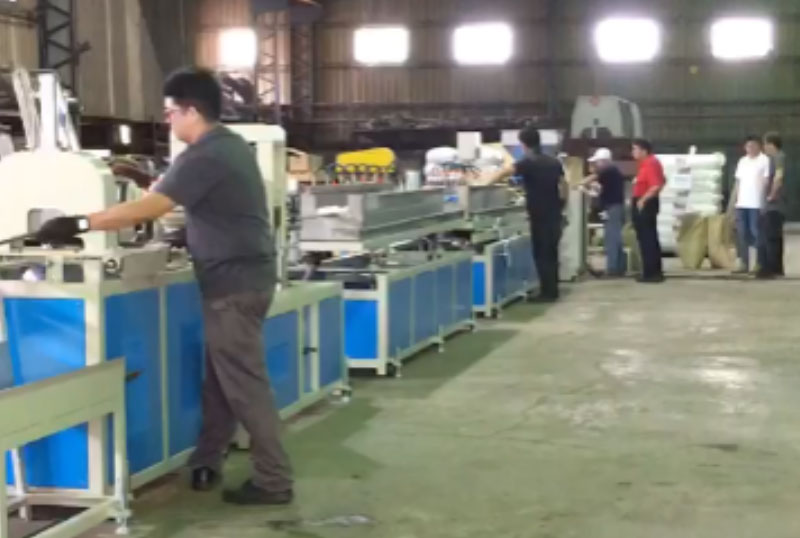

WPC profile extrusion line test in Asia


With the support of Cheng Yu’s WPC profile machine and advanced wood plastic composite machinery, the client now produces durable, fully customized WPC profiles that meet both environmental challenges and local market demands.

Explore the real-world applications of Wood Plastic Composite Machinery across industries. See how it drives innovation in various sectors through detailed case studies.



Why Choose Cheng Yu’s Wood Plastic Composite Machinery?


Cheng Yu Plastic Machine specializes in automated WPC profile extrusion lines designed for high wood powder content. Featuring precise temperature control, efficient hopper mixing, and customizable screw designs, the machinery ensures stable flow, accurate shaping, and consistent, durable output.


WPC profile extrusion line with precise shaping and durable output


Selecting the right wood plastic composite machinery is essential for achieving reliable production, material efficiency, and product quality. Cheng Yu provides tailored machinery solutions to meet diverse production requirements and support long-term business growth.



Boost WPC Production with Advanced Extrusion Machinery


Cheng Yu’s fully automated WPC profile extrusion line integrates hopper mixing, co-extrusion technology, and precision heating systems. Designed to process plastic materials efficiently, it ensures smooth material flow, accurate profile formation, and high-quality surface finishes.

This smart extrusion technology supports scalable production, expanding WPC applications across architecture, outdoor landscaping, and interior design markets.

Ready to enhance your production capabilities? Contact Cheng Yu today to explore a tailored solution.
