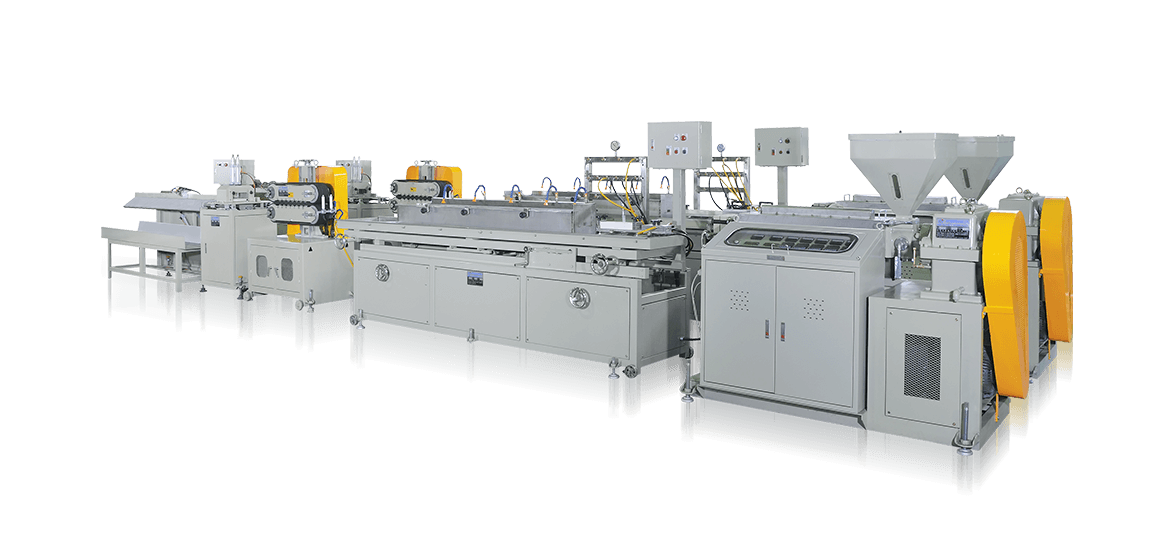

PE/PP/PS/TPE/PVC Plastic Wood Composite Profile Extrusion Line

Features

New Revolution Wood Plastic Composite Material

  • Unique patented technology can be injection and extrusion molded sandwich, finished products have a smooth surface and internal micro-bubbles nuclear characteristics can enhance product value-added.
  • Products weight loss reached lightweight while reducing the cost of the raw materials used.
  • Reduce the cooling time, improve production efficiency.
  • Reduce the product shrinkage and warpage problem.
  • Do not use chemical blowing agents will not produce the freon gas of the impact on the environment through the European Union in 2013 disabled 6 chemical blowing agent restriction.
  • Can be used in the non-chemical blowing agents can be added to plastic materials.
  • If didn't use physical foaming, the function with general injection molding machine and extrusion line are the same original raw materials of chemical blowing agents, can continue using the machine.
  • Lightweight the Product and Reduce the cost.
  • Innovation and Huge Progress.

APPLICATION

wood plastic seat

wood plastic seat

wood plastic floor

wood plastic floor

wood plastic pillar

wood plastic pillar

wood plastic beam

wood plastic beam

wood plastic bookcase

wood plastic bookcase

wood plastic room

wood plastic room

wood plastic ceiling

wood plastic ceiling

wood plastic screen

wood plastic screen

wood plastic totem

wood plastic totem

wood plastic table

wood plastic table

wood plastic window

wood plastic window

wood plastic door

wood plastic door

wood plastic fence

wood plastic fence

wood plastic wall

wood plastic wall

wood plastic pavilion

wood plastic pavilion

wood plastic decorate

wood plastic decorate

Specifications

Model CY-50PW CY-65PW CY-70PW CY-80PW CY-100PW
EXTRUDING CAPACITY (KGS/HR) 20 ~ 40 30 ~ 55 35 ~ 65 70 ~ 100 70 ~ 100
SCREW DIAMETER (MM) 50 m/m ø 65 m/m ø 70 m/m ø 80 m/m ø 100 m/m ø

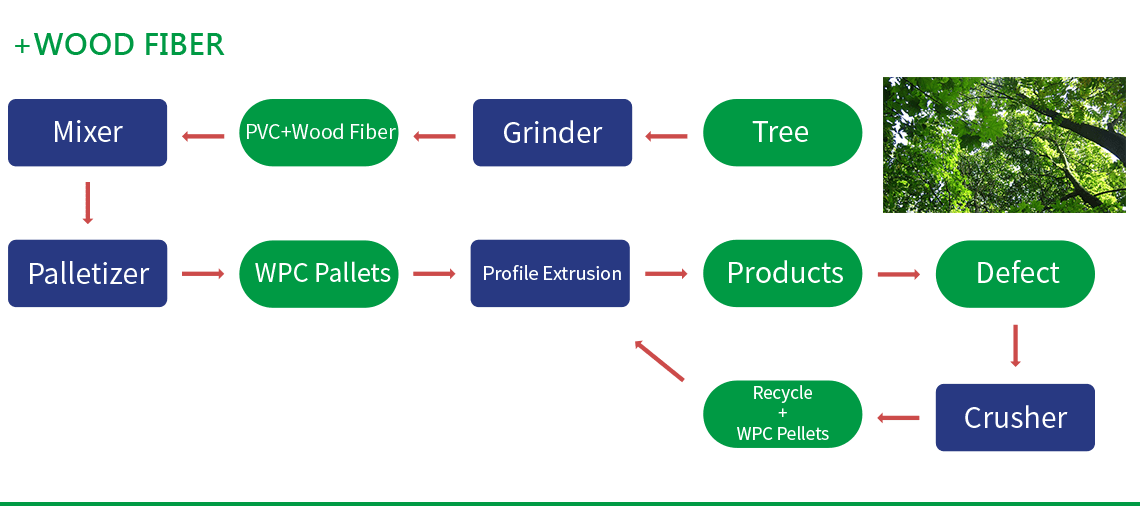

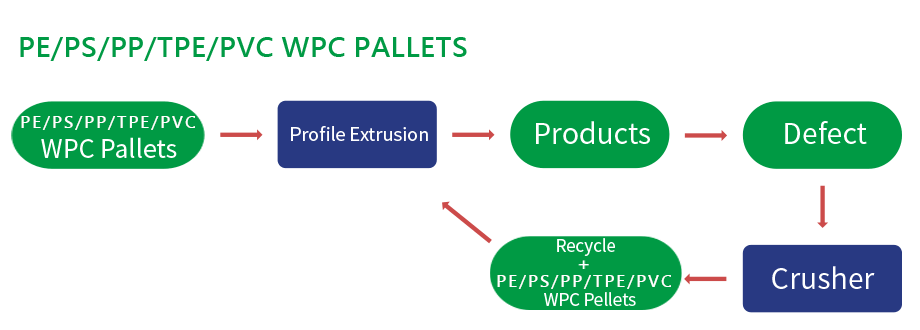

Wood Plastic Composite Process

PROCESS


PERFORMANCE CHARACTERISTICS

PROPERTY METHOD TEST RESULT
SPECIFIC DENSITY ASTM D648 700.00 kg/m³
MOISTURE CONTENT ASTM D648 1.70%
BENDING STRENGTH ASTM D1037-93 27.74 N/mm²
COMPRESSION TEMPERTURE ASTM D1037-93 11.6749 N/ mm²
SOFTENING TEMPERATURE ASTM D648 83.0℃
FIRE RETARDANT UL 94
SCREW WITHDRAWAL BS 6948:1989 91.85N
